What are the Temperature Range Specifications for Aviation Cable? Ensuring Reliability in Extreme Environmen...

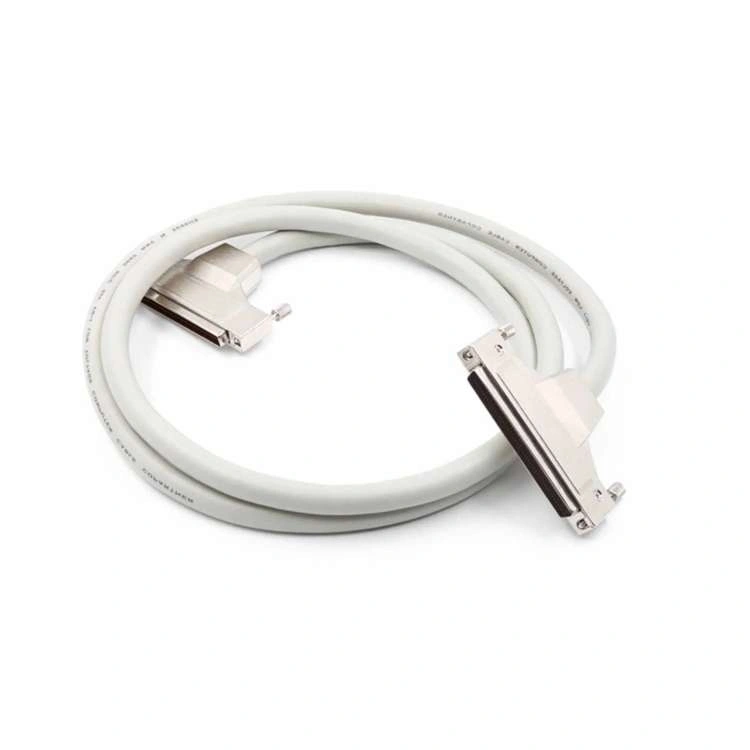

Aviation cables form the nervous system of any aircraft, carrying vital power and signals across critical systems. Given the vast operational environments aircraft encounter – from freezing high-altitude cruising to scorching tarmac conditions – understanding the ​temperature range specifications​ for aviation cable is paramount for safety, reliability, and regulatory compliance.

​Why Temperature Range Matters in Aviation Wiring​

Electrical wires are not immune to temperature. Heat degrades insulation over time, accelerates conductor oxidation, and can lead to brittleness, cracking, or insulation softening. Extreme cold makes materials stiff and prone to cracking under flex or vibration. Using cable outside its specified range risks:

• ​Insulation Failure:​​ Cracking, melting, or charring.
• ​Conductor Degradation:​​ Increased resistance leading to voltage drop, potential overheating.
• ​Connection Failures:​​ Embrittlement leading to breaks, thermal cycling loosening terminals.
• ​System Malfunction or Catastrophe:​​ Loss of critical systems (navigation, control, communication).

Therefore, aviation cable temperature ratings are rigorously defined and tested.

​Key Aviation Cable Temperature Range Specifications (Standards-Based)​​

Most aviation cables are manufactured to stringent military or industry standards, which explicitly define their temperature capabilities. The most common include:

1. ​MIL-W-22759 (AS22759) Series:​​ This is arguably the most widely recognized standard for aerospace wire and cable in the US.
   • ​Temperature Range:​​ -55°C (-67°F) to ​​+200°C​ (+392°F).
   • ​Insulation:​​ Primarily Polyimide (e.g., Kapton®) or a combination like Polyimide/FEP/Teflon®. These materials offer exceptional high-temperature resistance.
   • ​Derating:​​ While rated for continuous use up to 200°C, significant ​current carrying capacity (ampacity) derating is required at temperatures above 150°C. The wire may safely survive short-term exposure to higher temps, but continuous electrical load must be reduced as temperatures rise.
2. ​MIL-DTL-27500 (NEMA WC27500):​​ Standard for aerospace-grade single conductor shielded cable.
   • ​Temperature Range:​​ Typically ​​-55°C to +150°C​ (-67°F to +302°F).
   • ​Insulation:​​ Often ETFE (Tefzel®), PTFE (Teflon®), or cross-linked polymers.
   • ​Application:​​ Commonly used for coaxial cables (like RG-142, RG-400) for antennas, data buses, and avionics where EMI shielding is critical.
3. ​SAE AS4372 / AS4373:​​ Covers thermoplastic- and teflon-insulated wires, widely used in non-critical or commercial aircraft applications.
   • ​Temperature Range:​​ Varies significantly by insulation type:
     • ​AS4372 (Thermoplastic – e.g., PVC/Polyester Nylon):​​ ​​-55°C to +105°C​ (-67°F to +221°F). Lower cost, good general purpose, but not suitable for high-heat areas.
     • ​AS4373 (Thermoset/Teflon – e.g., ETFE, PTFE):​​ ​​-65°C to +150°C​ (-85°F to +302°F) or even higher depending on specific type (e.g., AS4373 Type L: 200°C). Offers better heat resistance than thermoplastic.
   • ​Importance:​​ Knowing the exact type (e.g., AS4373 Type CA vs. Type E) is crucial as temperature ratings differ.
4. ​ISO 6722 (Automotive Influence):​​ While primarily automotive, some smaller aircraft or subsystems might utilize cables meeting this standard.
   • ​Temperature Range:​​ Varies by grade, typically ​​-40°C (-40°F) to +85°C​ (+185°F) for basic grades, up to ​​-40°C to +125°C​ (+257°F) or ​​-40°C to +150°C​ (+302°F) for higher-grade versions.

​Factors Influencing Operational Temperature Limits​

• ​Insulation Material:​​ This is the primary determinant. Polyimide, PTFE, ETFE offer high heat resistance; PVC has lower limits.
• ​Voltage Rating:​​ Higher voltage rated cables may have slightly different thermal characteristics.
• ​Environmental Sealing:​​ Exposure to fluids (fuel, hydraulic fluid, Skydrol®) can alter performance at temperature extremes.
• ​Current Load (Electrical Load):​​ Higher currents generate internal heat (I²R losses), raising the wire’s temperature above the ambient temperature. This internal heating must be factored into the environmental temperature encountered.
• ​Bundling / Installation Location:​​ Wires bundled tightly together or enclosed in conduits/junction boxes dissipate heat poorly, leading to localized higher temperatures. Wires near engines, APUs, or brakes experience significantly higher ambient temperatures.

​Summary Table: Common Aviation Cable Specifications & Temperatures​

​​(Image concept: Comparative chart visually showing the min/max ranges for MIL-W-22759, AS4373 High Temp, AS4373 Std, AS4372 against a thermometer graphic.)​​

​Choosing the Right Cable: Beyond Just Temperature​

While temperature range is critical, it’s only one factor:

1. ​Application:​​ High-vibration zones need high-flex life. Engine/fire zones require fire-resistant cables (e.g., AS23053).
2. ​Fluid Resistance:​​ Match cable insulation to the specific fluids it will contact.
3. ​Regulatory Compliance:​​ The aircraft or system design must specify cables meeting approved standards (FAA, EASA, etc.).
4. ​Voltage & Ampacity:​​ Ensure the cable handles required voltage and current at operating temperature.
5. ​Shielding:​​ Required for sensitive signals to prevent EMI.

​Conclusion​

The temperature range specifications for aviation cable are not mere suggestions; they are hard limits defined by stringent testing under military and aerospace standards. ​MIL-W-22759/AS22759 wire offers the highest continuous operating temperature (200°C, with derating)​​ for extreme environments, while cables like MIL-DTL-27500 and SAE AS4373 provide robust performance up to 150°C. SAE AS4372 serves less demanding applications. Critically, internal heating from electrical load and localized ambient conditions must always be considered when selecting wire.
