What Are the Electrical Properties of Aviation Cable? Understanding P...

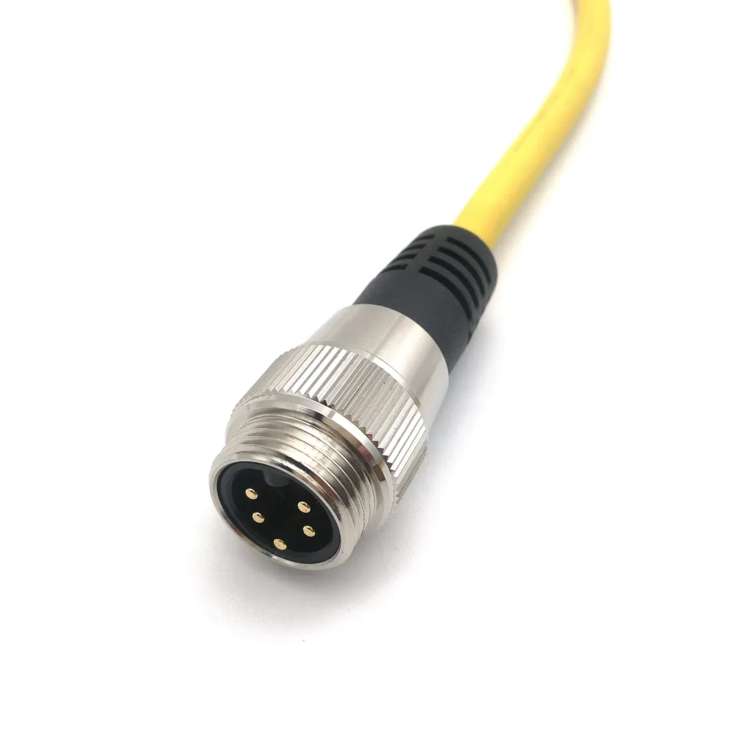

Aviation cable (also called aircraft wire or mil-spec wire) is the lifeline of modern aircraft systems, carrying critical power and signals from engines to avionics. Understanding its specific electrical properties is non-negotiable for aerospace engineers, maintenance crews, and procurement specialists. These properties directly impact safety, reliability, and performance under extreme conditions. Let’s delve into the key electrical characteristics that define aviation-grade cabling:
1. Voltage Rating (Dielectric Strength):
What it is: The maximum voltage an insulated conductor can withstand without breakdown or arcing.
Importance: Ensures safe operation under normal and surge conditions. Failure can cause catastrophic shorts or fires.
Typical Values: Varies significantly by specification and wire gauge.
Common Mil-Spec (e.g., MIL-W-22759/16): Rated at 600 Volts AC RMS (Root Mean Square).
Higher Performance Specs: Can be rated for 1000V, 3000V (e.g., MIL-W-22759/34-38), or even higher for specific applications like ignition systems.
Critical Note: AC rating is typically lower than DC rating due to the peak voltage of AC waveforms.
Factors Influencing: Insulation material type and thickness, operating temperature, conductor quality.
2. Insulation Resistance:
What it is: The resistance offered by the insulation material to the flow of DC current (leakage current) between the conductor and ground or other conductors. Measured in Megaohms (MΩ) per unit length (usually per 1000 feet).
Importance: High insulation resistance prevents leakage current, power loss, signal degradation, and potential ground faults.
Typical Values: Measured at room temperature and at elevated temperatures (e.g., operating temperature +10°C).
Minimum Requirement: Often ≥ 5000 MΩ per 1000 ft at room temp (20°C). Higher is always better.
Test Conditions: Specified tests involve immersion in water for 24 hours followed by measurement.
Polyimide (Kapton): k ≈ 3.4-3.5, tan δ ≈ 0.005-0.015 (Good, often used in harness overbraiding/jacketing)
4. Capacitance:
What it is: The ability of two conductors separated by insulation to store an electrical charge. Measured in Picofarads per foot (pF/ft), usually Conductor-to-Conductor (CtC) or Conductor-to-Shield/Ground (CtG).
Importance: Directly impacts signal transmission:
Higher capacitance increases signal attenuation (loss), limits usable bandwidth, and can slow down digital signal edge rates, causing timing errors.
Critical for impedance-matching in RF and high-speed digital circuits.
Typical Values: Depends heavily on wire gauge, insulation type/thickness, and pair configuration (e.g., twisted pair).
Shielded Twisted Pair (e.g., ARINC 629/664): CtC capacitance is tightly controlled (e.g., typically ≤ 25-35 pF/ft).
What it is: The total opposition a cable presents to AC current flow, combining resistance, inductive reactance, and capacitive reactance. Crucial for transmission lines. Measured in Ohms (Ω).
Importance: Critical for minimizing signal reflections and ensuring maximum power transfer in high-frequency systems (radio, radar, data buses). Mismatched impedance causes signal echo and distortion.
Typical Values:
RF Coaxial Cables: Commonly 50 Ω or 75 Ω.
Twisted Pair Data Buses: Often 100 Ω, 120 Ω (like ARINC 429), or 150 Ω (obsolete MIL-STD-1553).
What it is: The inherent opposition to direct current flow through the conductor metal, measured in Ohms per unit length (Ohms per 1000 ft). Specified at a standard temperature (e.g., 20°C).
Importance: Determines voltage drop along the wire and power loss (I²R loss). Excessive voltage drop can prevent systems from operating correctly or generate excess heat in bundles.
Typical Values: Strictly specified by wire gauge and material per standards (e.g., MIL-W-22759 Table I). Values increase significantly with smaller gauge numbers (larger wire) and longer lengths.
Factors Influencing: Conductor metal (almost exclusively copper in aircraft), cross-sectional area, temperature (resistance increases with temperature).
7. Corona Inception Voltage (CIV):
What it is: The minimum voltage at which partial electrical discharge (corona) begins to occur around the conductor within the insulation voids or at interfaces.
Importance: Corona generates ozone and nitric acid, degrading insulation prematurely. It also causes electrical noise interfering with sensitive avionics.
Significance: Aircraft wiring operates at high altitudes where reduced air pressure significantly lowers the Corona Inception Voltage compared to sea level. Special measures (thick insulation, smooth conductors, void-free materials) are used to ensure CIV is well above operating voltage.
8. Arc Resistance & Tracking Resistance:
What it is: The ability of the insulation material to withstand a high-voltage electrical arc across its surface without forming a conductive carbonized path (tracking) that leads to failure.
Importance: Vital for preventing fire propagation and maintaining insulation integrity after transient events like lightning strikes or power surges. Aircraft wiring must resist tracking even under contaminated (e.g., salt spray, de-icing fluid) conditions.
Materials: Teflon (PTFE) and Kapton (Polyimide) are known for excellent arc and track resistance.
Why These Properties Matter Immensely in Aviation
Unlike terrestrial applications, aircraft wiring operates in an environment characterized by:
Extreme Temperature Swings: From -65°C at altitude to +150°C+ near engines/APUs.
Severe Vibration & Flexing: Constant stress during flight cycles.
Zero Tolerance for Failure: Electrical faults can be catastrophic. Weight is also a critical constraint.
Choosing aviation cable based solely on its electrical properties without understanding the specific requirements of the application (voltage, current, frequency, environment) can lead to system malfunctions, costly downtime, or safety hazards. Standards like SAE AS22759, MIL-DTL-27500, and MIL-W-22759 rigorously define these properties and the qualification tests wires must pass.
In Conclusion:
The electrical properties of aviation cable are a complex interplay of insulation materials, conductor design, and physical construction. Properties like voltage rating, insulation resistance, capacitance, impedance, and corona resistance are not just technical specifications – they are vital parameters ensuring the safe, reliable, and efficient operation of critical aircraft systems in the most demanding conditions on Earth. When selecting or maintaining aircraft wiring, a deep understanding of these properties is fundamental to airworthiness.
