The Critical Guide: How to Test Aviation Cable for Propagation Delay (and Why It Matters)

In the demanding world of aviation, where split-second decisions and flawless system communication are paramount, ​aviation cable​ isn’t just wire – it’s a vital nervous system. Signals carrying flight data, control commands, and sensor readings must traverse these cables with near-perfect timing. Even minuscule delays can cascade into system errors, degraded performance, or catastrophic failures. This makes testing ​propagation delay​ – the time it takes for an electrical signal to travel from one end of a cable to the other – absolutely critical for any application involving ​aviation cable. Here’s a comprehensive look at how and why it’s done.

​Understanding Propagation Delay: The Speed Bump in Your Signal​

At its core, propagation delay (Tpd) is a measure of signal travel time. It’s governed by the physical properties of the cable and the surrounding dielectric material, primarily its ​relative permittivity (Er)​. The speed of the signal down the conductor isn’t the speed of light in a vacuum; it’s slowed down by the dielectric. The formula is roughly:

Tpd = (Length * √Er) / c

Where:

• •Length is the cable length.
• •Er is the relative permittivity of the insulation/dielectric material.
• •c is the speed of light in a vacuum (~3 x 10^8 m/s).

​Why Test Propagation Delay in Aviation Cable?​​

• •​System Synchronization:​​ Avionics systems often rely on precise timing. Differences in delay between cables carrying related signals (e.g., control surface feedback on different channels, data bus pairs like ARINC 429, MIL-STD-1553, or modern Ethernet AVB/TSN) can cause misinterpretation or data corruption.
• •​Network Performance:​​ High-speed digital systems (like AFDX or emerging deterministic Ethernet backbones) have strict timing budgets. Excessive delay in ​aviation cable​ segments can cause late-arriving packets, retransmissions, reduced throughput, or even network faults.
• •​Stability in Feedback Loops:​​ Flight control systems operate with rapid feedback. Unaccounted-for delay in sensor or command signal paths can introduce phase shifts, potentially destabilizing these critical loops.
• •​Ranging & Distance Measurement:​​ Systems like Radar Altimeters or certain integrated diagnostics rely on precise timing of signal round-trips. Accurate knowledge of cable propagation delay is essential to correct for the time spent within the aircraft’s wiring.
• •​Predictability and Modeling:​​ Knowing the precise delay characteristics of certified ​aviation cable​ allows engineers to accurately model system behavior during design and troubleshooting.
• •​Quality Assurance & Conformity:​​ Testing ensures purchased ​aviation cable​ meets the manufacturer’s specifications and aviation regulatory standards for performance. Batch variations, manufacturing defects, or damage can alter expected delay.

​How to Test Aviation Cable Propagation Delay: Core Methods​

Testing requires specialized high-frequency equipment capable of measuring very short time intervals (nanoseconds, often picoseconds per meter).

1. 1.​Time Domain Reflectometry (TDR): The Gold Standard​
   • •​Principle:​​ A TDR instrument sends a fast-rise-time step pulse or a very short duration pulse down the cable under test. It simultaneously measures the reflected energy over time.
   • •​Setup:​​ Connect one end of the ​aviation cable​ (open or terminated with a known impedance) to the TDR output. Ensure the cable is straight and not coiled, as bending affects characteristics. Use high-quality, calibrated test leads and adapters matching the cable’s impedance (e.g., 50Ω, 75Ω, or characteristic impedance of twisted pairs used in aviation buses).
   • •​Measurement:​​
     • •Trigger the pulse transmission.
     • •The TDR display shows amplitude versus time.
     • •The initial “launch” point is the start reference.
     • •Locate the pulse reflection from the far end of the cable.
     • •The time difference (Δt) between the launch point and the arrival of the far-end reflection peak represents the round-trip time for the signal (down and back).
     • •​Propagation Delay (Tpd) = (Δt) / 2​
   • •​Calibration:​​ Essential! Calibrate the TDR using known references (e.g., a precise length of known-good calibration cable or an Open/Short/Load calibration kit) immediately before testing the target ​aviation cable, especially if measuring picosecond differences. This nullifies the inherent delay of the test fixtures and connectors.
   • •​Resolution:​​ Accuracy depends heavily on the TDR’s rise time (faster rise time = better resolution). Modern high-performance TDRs are needed for precise aviation-grade measurements. Sampling oscilloscopes with TDR modules are common.
2. 2.​Network Analysis (VNA Method – Vector Network Analyzer)​​
   • •​Principle:​​ A VNA measures the transmission (S21) phase response of the cable across a range of frequencies.
   • •​Setup:​​ Connect the ​aviation cable​ between Port 1 and Port 2 of the VNA. Perform a full 2-port calibration (SOLT or TRL) at the plane of the cable connectors using a calibration kit. This removes fixture effects.
   • •​Measurement:​​
     • •Set the VNA to measure the S21 parameter (transmission).
     • •Configure it to display phase vs. frequency over the relevant operating bandwidth.
     • •The propagation delay is derived from the phase slope: ​Tpd = -(dΦ/dω) / 2, where Φ is phase (radians) and ω is angular frequency (rad/s). Modern VNAs often calculate and display group delay directly, which is directly related to propagation delay (Group Delay ≈ Tpd for low-dispersive cables like good ​aviation cable).
     • •Important: This measures the group delay, which is the derivative of phase vs. frequency. For ideal dispersion-free cables, group delay equals phase delay (propagation delay). Good quality ​aviation cable​ is designed for minimal dispersion.
   • •​Advantages:​​ VNAs provide frequency-dependent information, revealing if delay varies across the band (dispersion). They are less susceptible to noise than TDR for very long cables.
3. 3.​High-Speed Digital Sampling / Bit Error Rate Tester (BERT):​​
   • •​Principle:​​ For high-speed digital buses implemented with ​aviation cable​ (e.g., GbE, AFDX), propagation delay contributes directly to total link latency.
   • •​Setup:​​ Use a BERT or high-speed pattern generator/detector.
   • •​Measurement:​​ Measure the time skew between the transmitted pattern at the generator output and the received pattern at the detector input after passing through the cable. This captures the total path delay, primarily the cable propagation delay plus some fixed transmitter/receiver latency (which can often be calibrated out using a known short path).
   • •​Context:​​ This method directly tests the cable in a system-like scenario, integrating signal integrity effects, but isolating cable delay from other system delays requires care.

​Factors Influencing Propagation Delay in Aviation Cable​

• •​Cable Length:​​ Directly proportional (longer cable = more delay).
• •​Dielectric Material (Er):​​ The core determinant. Materials like low-loss PTFE-based insulators (common in high-speed ​aviation cable) have lower Er (~2.0-2.1) than PVC or PE, resulting in faster propagation (less delay).
• •​Construction:​​ Shielding, twisting, geometry (coaxial vs. twisted pair) influence capacitance and inductance, affecting velocity of propagation (Vp = c / √Er).
• •​Temperature:​​ Er can change slightly with temperature, causing delay drift. High-grade ​aviation cable​ is designed for stable performance over wide temperature ranges.
• •​Frequency:​​ For very high frequencies, dispersion can cause the propagation delay to vary slightly with frequency. This is usually minimal in well-designed cables within their operating bandwidth.

​Testing Best Practices for Aviation Cable​

1. 1.​Know the Spec:​​ Obtain the expected propagation delay (or velocity of propagation Vp, from which Tpd is calculated) specification from the ​aviation cable​ manufacturer or relevant standard (SAE AS22759, MIL-DTL-17, etc.).
2. 2.​Calibrate Meticulously:​​ Perform calibration immediately before measurement for both TDR and VNA methods. Use calibration standards traceable to national standards.
3. 3.​Control Environment:​​ Perform tests at controlled temperature (e.g., 20-25°C) and humidity, as per specification testing requirements. Document environmental conditions.
4. 4.​Minimize Fixtures:​​ Use shortest possible high-quality test leads/adapters between the instrument and the DUT (Device Under Test – the ​aviation cable).
5. 5.​Proper Termination:​​ For TDR, termination affects the reflection characteristics. An open end gives the largest reflection but is susceptible to environmental noise. A precision matched termination absorbs energy and provides a cleaner trace. Know which method your standard requires.
6. 6.​Measure Multiple Samples/Lengths:​​ Test several samples from the batch/length. For precise per-meter calculations, test a known, accurately measured long length. Measuring very short lengths amplifies connector/fixture influence.
7. 7.​Record Raw Data:​​ Save measurement traces and instrument settings for traceability and future reference.
8. 8.​Safety First:​​ Ensure all equipment is properly grounded and procedures followed, especially when dealing with powered systems.

​Interpreting Results & Taking Action​

• •​Compare:​​ Compare measured propagation delay against the specified requirement for your application or the cable’s datasheet. Is it within tolerance?
• •​Evaluate Skew:​​ For differential pairs (twisted pair within ​aviation cable), measure propagation delay on both conductors. The difference (delay skew) must be extremely low for high-speed digital signals.
• •​Consistency:​​ Results should be consistent across samples from the same spool/batch. Significant variation can indicate manufacturing inconsistency.
• •​Impact Analysis:​​ If delay is out-of-spec, assess the impact on your specific application. Does it eat into the system timing margin? Could it cause synchronization failures or bit errors?
• •​Root Cause:​​ Investigate potential causes – incorrect material, construction flaw, damage during handling, or measurement error.

​Conclusion: Precision in Signal Transit Defines Aviation Safety​

Accurately testing and ensuring minimal, predictable propagation delay isn’t an academic exercise; it’s a fundamental requirement for the integrity of modern avionics systems relying on ​aviation cable. From fly-by-wire commands to high-bandwidth data networks, precise signal timing underpins safety and performance. Choosing cable designed for stable electrical characteristics and rigorously verifying propagation delay is non-negotiable.

​Engineered for Uncompromised Signal Integrity: FRS Brand Factory​

At FRS Brand Factory, we understand the criticality of every nanosecond. Our mission is to deliver ​aviation cable​ solutions where signal integrity, timing precision, and unwavering reliability are engineered into every meter.

We don’t just manufacture wire; we engineer lifelines for airborne communication. Our advanced ​aviation cable​ portfolio features:

• •​Optimized Dielectrics:​​ Utilizing ultra-low-loss, temperature-stable materials (like specialized PTFE blends) for consistent propagation delay and minimal dispersion, meeting the tightest requirements of ARINC, MIL-STD, DO-160, and bespoke system needs.
• •​Precision Manufacturing:​​ State-of-the-art processes control conductor placement, insulation concentricity, and twist geometry to minimize delay variation and skew, ensuring predictable performance batch after batch.
• •​Rigorous Testing Culture:​​ Propagation delay (Tpd), velocity of propagation (Vp), delay skew, and phase stability are not just checked; they are core parameters monitored throughout our manufacturing process. Our in-house labs utilize calibrated high-frequency TDRs and VNAs for exhaustive characterization, backed by full traceability. We test to the limits defined by aviation standards and customer requirements.

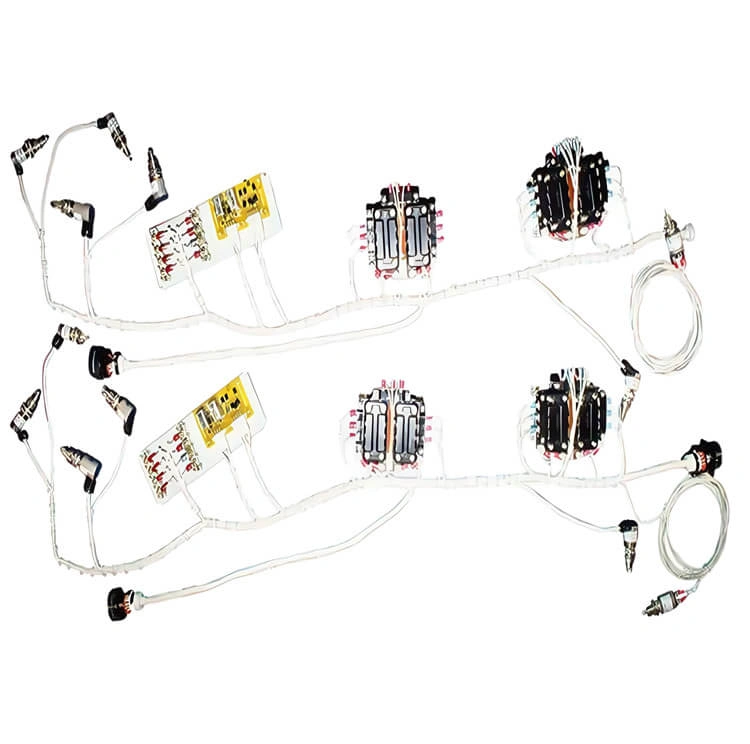

• •​Comprehensive Solutions:​​ From lightweight signal coax and shielded twisted pairs optimized for ARINC 429, MIL-STD-1553, and AFDX/Ethernet backbones to complex mil-spec harness assemblies, we provide certified solutions built on the foundation of impeccable signal timing.
