Cable Management in Tight Aircraft Spaces: Mastering the Critical Art...

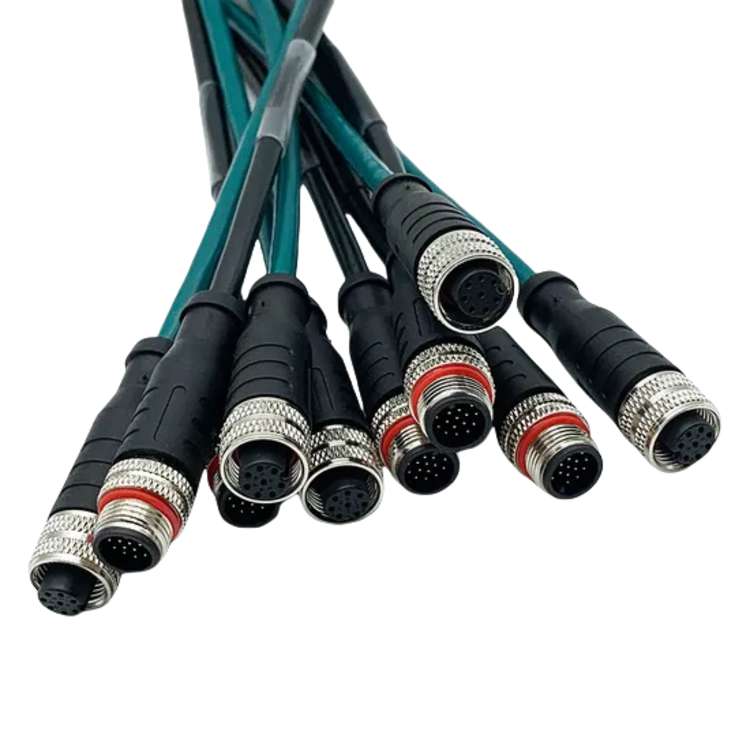

The intricate dance of wires and cables within an aircraft is a marvel of modern engineering, hidden beneath panels and within confined channels. Yet, ​cable management in tight aircraft spaces is far more than just neatness; it’s a critical discipline impacting safety, reliability, weight, maintenance efficiency, and regulatory compliance. For engineers, technicians, and aviation professionals, mastering this art is non-negotiable. This guide delves deep into the challenges and proven solutions for effective cable routing and organization where space is at an absolute premium.

Why Aircraft Cable Management Demands Utmost Attention

Aircraft environments present unique and demanding challenges:

1. ​Extreme Space Constraints: Every cubic inch is meticulously designed and accounted for. Cables compete with hydraulic lines, fuel systems, control linkages, and structural elements for precious routing paths.
2. ​Weight is Paramount: Excess cable length or bulky management solutions directly translate to increased weight, impacting fuel efficiency and payload capacity. Every gram counts.
3. ​Vibration & Movement: Aircraft experience constant vibration during operation, takeoff, landing, and turbulence. Cables must be secured to prevent chafing, fatigue, and eventual failure.
4. ​Harsh Environmental Conditions: Exposure to extreme temperatures (both high and low), humidity, potential fluids (hydraulic, fuel, de-icing), dust, and chemicals demands robust cable protection and materials.
5. ​Critical Safety Implications: A single chafed wire causing a short circuit, arcing, or signal interference can have catastrophic consequences. Redundancy and separation of critical systems are paramount.
6. ​Strict Regulatory Compliance: Aviation authorities (FAA, EASA, etc.) enforce rigorous standards (e.g., FAA AC 43.13-1B Ch 11, AS50881) governing cable installation, separation, support, and protection. Non-compliance is not an option.
7. ​Maintenance & Troubleshooting Accessibility: Technicians need clear access to inspect, test, and replace cables without causing collateral damage or excessive downtime. Poor management turns simple tasks into nightmares.

Consequences of Poor Aircraft Cable Management

Neglecting proper cable organization leads directly to:

• ​Increased Risk of Electrical Faults: Chafing, pinching, and short circuits.
• ​Electromagnetic Interference (EMI): Poor separation leading to signal corruption in sensitive avionics.
• ​System Failures & Downtime: Difficult troubleshooting and component replacement.
• ​Weight Penalties: Excess cable and inefficient routing.
• ​Fire Hazard: Potential for arcing or overheating.
• ​Failed Inspections: Costly rework and delays.
• ​Reduced Aircraft Lifespan: Accelerated wear and tear on wiring systems.

Strategies for Effective Cable Management in Confined Aircraft Spaces

Overcoming these challenges requires a systematic approach and specialized solutions:

1. ​Meticulous Planning & Design (The Foundation):
   • ​Detailed Schematics & Routing Plans: Use advanced CAD/CAM software to model cable runs in 3D, identifying optimal paths and potential conflicts before installation.
   • ​Harness Design: Group related cables into bundles (harnesses) at the design stage. This simplifies installation, improves organization, and enhances protection. Plan harness breakout points strategically.
   • ​Minimize Length: Precisely calculate required cable lengths with minimal slack. Avoid excessive coiling or looping. Use connector locations strategically.
   • ​Separation & Segregation: Strictly adhere to separation requirements for power cables, sensitive signal cables (avionics), and high-frequency cables to prevent EMI. Use separate conduits, trays, or physical barriers.
2. ​Specialized Support & Securement Solutions:
   • ​Lightweight Clamps & Clips: Utilize aircraft-grade (e.g., MIL-SPEC) nylon, PEEK, or lightweight metal clamps designed for tight spaces. Choose styles that allow for easy installation and removal (e.g., snap-in, hinged).
   • ​Adhesive-Backed Mounts: Ideal for securing small bundles or individual cables to smooth surfaces where drilling isn’t feasible or desirable. Ensure adhesive is qualified for the aircraft environment (temperature, chemicals).
   • ​Cable Ties (Used Judiciously): Employ high-temperature, flame-retardant nylon or specialty ties (e.g., lacing tape for high-vibration areas). Always trim tails flush to prevent snagging. Avoid over-tightening. Consider releasable ties for maintenance access points.
   • ​Conduits & Sleeving:
     • ​Flexible Conduit: Provides excellent abrasion and crush protection in dynamic areas. Choose lightweight, flame-retardant options.
     • ​Braided Sleeving: Offers abrasion resistance, some EMI shielding (depending on type), and flexibility. Ideal for grouping smaller bundles within a larger space.
     • ​Heat-Shrink Sleeving: Provides environmental sealing, strain relief, and bundling at termination points or over splices.
     • ​Spiral Wrap: Quick solution for bundling and light protection; ensure ends are secured to prevent unraveling.
   • ​Cable Trays & Raceways: Use lightweight, perforated trays in larger, accessible bays for organized routing of multiple harnesses. Essential for maintaining separation.
3. ​Material Selection & Cable Protection:
   • ​Aircraft-Qualified Cable: Use cables specifically designed and tested for aviation (e.g., meeting AS22759, Teflon-insulated for high temp, arc-track resistant).
   • ​Grommets & Edge Protectors: Always install grommets in holes bulkheads, frames, or panels to prevent cable insulation from being cut by sharp edges. Use edge protectors on structures.
   • ​Chafe Protection: Apply abrasion-resistant sleeves (like woven polyester or high-temp textile) anywhere cables pass near structures or other components, or where vibration-induced rubbing is likely.
4. ​Labeling & Documentation (Essential for Maintenance):
   • ​Clear, Durable Labels: Label both ends of every wire and cable according to the wiring diagram. Use heat-shrink labels or laser-marked tags that withstand the environment. Include circuit ID, function, and termination points.
   • ​Accurate As-Built Documentation: Update wiring diagrams meticulously during and after installation/modification. This is critical for future troubleshooting and maintenance.
5. ​Installation Best Practices:
   • ​Gentle Bending Radii: Adhere strictly to the cable manufacturer’s minimum bend radius specifications to avoid damaging conductors or insulation.
   • ​Avoid Sharp Bends & Kinks: Route cables smoothly. Use supports to maintain gentle curves.
   • ​Secure Slack: Manage any necessary slack with figure-8 loops or service loops secured near the termination point, not in the middle of a run.
   • ​Strain Relief: Ensure cables are clamped or supported close to connectors to prevent mechanical stress on terminations.
   • ​Inspection & Testing: Perform thorough visual inspections during and after installation. Conduct continuity, insulation resistance, and functional tests.

Advanced Considerations

• ​Modular Wiring: Increasingly used for complex systems, allowing pre-assembled, tested harness segments to be connected quickly, improving quality and reducing installation time in tight spaces.
• ​EMI/RFI Shielding: Critical for sensitive systems. Use shielded cables, proper grounding techniques, and maintain separation from noise sources.
• ​Weight Tracking: Meticulously document the weight of cables and management hardware used.
