Aviation Cable in Aircraft Lavatory Systems: Critical Connections for In-Flight Comfort & Safety

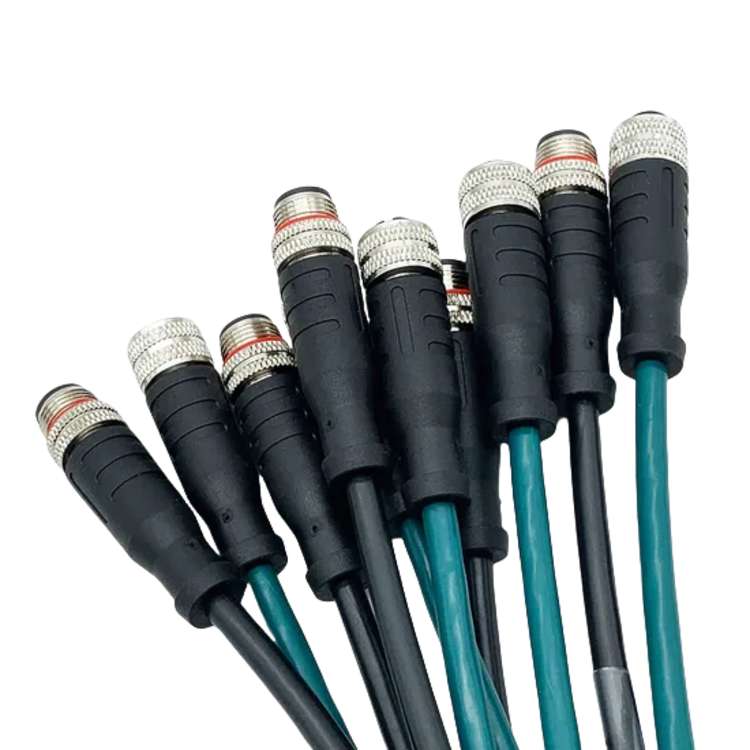

Modern aircraft lavatories are complex micro-systems, seamlessly integrating plumbing, waste management, ventilation, and electrical controls to ensure passenger hygiene and comfort during flight. At the heart of this intricate operation lies a critical, yet often overlooked component: ​aviation cable. Far more than simple wires, these specialized cables form the essential nervous system, powering functions and transmitting vital signals while meeting the demanding environment they operate within.

The Demanding Environment of Aircraft Lavatories

Cables within lavatory systems face unique and harsh conditions:

• ​High Humidity & Moisture: Sinks, toilets, and hand dryers generate significant airborne moisture and potential direct water contact.
• ​Chemical Exposure: Cleaning agents, disinfectants, deodorizers, biological waste, and potable water treatment chemicals can degrade unsuitable materials.
• ​Vibration: Constant engine and aerodynamic vibrations challenge cable integrity and connection points.
• ​Temperature Fluctuations: Wide temperature ranges occur from ground handling in various climates to high-altitude flight.
• ​Space Constraints: Lavatory compartments are compact, requiring flexible, small-diameter cabling for efficient routing.
• ​Stringent Safety Standards: Aviation demands the highest levels of fire safety, low toxicity, and low smoke emission (FST – Fire, Smoke, Toxicity).

Why Standard Cable Won’t Fly Here

Ordinary commercial or industrial cables simply cannot withstand these conditions reliably and safely. Aviation cable used in lavatories is specifically engineered to excel:

1. ​Robust Environmental Protection:
   • ​Superior Insulation: Materials like Tefzel (ETFE), Teflon (PTFE/FEP), or specialized cross-linked polymers provide exceptional resistance to moisture absorption, chemical attack, and microbial growth. Silicone rubber may be used where extreme flexibility is paramount.
   • ​Effective Jacketing: Tough outer jackets (e.g., Tefzel, PVC-Nylon, specialized elastomers) resist abrasion during installation/maintenance and protect against fluids. Halogen-free options (e.g., based on polyolefins) enhance FST performance.
   • ​Corrosion-Resistant Conductors: Typically tinned copper wires are used to prevent oxidation and corrosion, especially crucial in damp environments and when exposed to saline fluids or waste.
2. ​Critical Fire Safety Performance (FST): Compliance with rigorous standards (like AS4373, FAA FAR 25.853, Airbus ABD0031, Boeing BMS 13-48) is non-negotiable. Key requirements include:
   • ​Low Flame Propagation: Cables must self-extinguish immediately after a flame source is removed.
   • ​Low Smoke Density: Minimal smoke emission is vital for visibility during evacuation.
   • ​Low Toxicity: Fumes emitted during combustion must have very low toxicity levels.
3. ​Electrical Performance & Reliability:
   • ​Precise Voltage & Current Rating: Carefully matched to specific lavatory components (flush motors, faucet solenoids, heater elements, sensors, control panels).
   • ​Signal Integrity: Shielded cables are essential for sensitive controls and sensors to prevent electromagnetic interference (EMI), ensuring reliable signals between control panels, flush units, and tank level indicators.
4. ​Mechanical Integrity:
   • ​Vibration Resistance: Conductors, insulation, and termination points are designed to withstand constant in-flight vibration without fracturing or loosening.
   • ​Flexibility & Bend Radius: Designed for easy, space-efficient routing through tight spaces within the lavatory wall structure.
   • ​Abrasion Resistance: Jackets resist damage during installation, maintenance, and potential contact with surrounding structures.

Key Applications Within the Lavatory System

Aviation cables connect and power virtually every electrical function in the lavatory:

1. ​Toilet System:
   • ​Vacuum Generator: Powers the crucial pump motor creating the flush vacuum.
   • ​Flush Control Valve: Controls the water/vacuum flush activation.
   • ​Seat Sensors & Indicators: Signals occupancy status to the cabin management system and exterior indicator light.
   • ​Tank Level Sensors: Provides feedback on waste tank capacity.
2. ​Sink & Faucet:
   • ​Solenoid Valves: Controls the flow of water to the faucet.
   • ​Proximity Sensors/Manual Controls: Detects hand presence or receives user input to activate water flow.
   • ​Water Heater: Powers the heating element for warm water (if applicable).
3. ​Ventilation:
   • ​Extraction Fan Motor: Powers the fan removing odors and moisture.
4. ​Lighting & Controls:
   • ​Ceiling & Mirror Lights: Powers interior lighting.
   • ​Occupied/Vacant Sign: Controls the external status indicator.
   • ​Flush Control Panel/Buttons: Provides user interface signals and power.

Standards & Certification: Ensuring Airworthiness

Lavatory aviation cable must comply with stringent industry standards:

• ​AS50881: Standard for Wiring Aerospace Vehicle. The primary US standard covering design, installation, and maintenance.
• ​MIL Specs: Various military specifications often serve as the basis for commercial aerospace cable performance (e.g., MIL-W-22759, MIL-C-27500 – superseded but properties remain relevant).
• ​SAE Standards: Such as AS4373 for Test Methods for Insulated Electric Wire.
• ​OEM Specifications: Airbus (ABD), Boeing (BMS), and other manufacturers have detailed material specifications cables must meet.

The Cost of Failure: Why Quality Matters

Using substandard or compromised aviation cable within the lavatory system poses significant risks:

• ​System Malfunction: Failure of flush systems, loss of sink functionality, unlit compartments – disrupting passenger comfort and hygiene.
• ​Odor/Nuisance Issues: Faulty sensor wiring could lead to improper tank level indication or failure of ventilation fans.
• ​Electrical Faults: Short circuits or ground faults can cause power interruptions or require system reset, impacting service.
• ​Critical Safety Hazard: Non-compliant cable can compromise fire safety (faster flame spread, toxic smoke). Moisture ingress leading to corrosion or arcing poses fire and electrical risks.
• ​Increased Maintenance Costs: Premature cable failure leads to costly troubleshooting, part replacement, and aircraft downtime (AOG – Aircraft On Ground).

Investing in the Invisible Backbone

Aviation cable within aircraft lavatory systems is a vital engineering solution, not commodity wiring. Its specialized design for environmental resilience, fire safety, electrical reliability, and mechanical robustness is essential for the safe, comfortable, and trouble-free operation of one of the aircraft’s most heavily used and critical passenger amenities.

Understanding these stringent requirements underscores the importance of sourcing high-quality, certified aviation cable explicitly designed and tested for the demanding lavatory environment. Specifiers, installers, and maintainers play a crucial role in selecting and maintaining this critical infrastructure, ensuring lavatories function flawlessly flight after flight. Choosing reliable aviation cable protects passengers, crew, and the aircraft itself.
