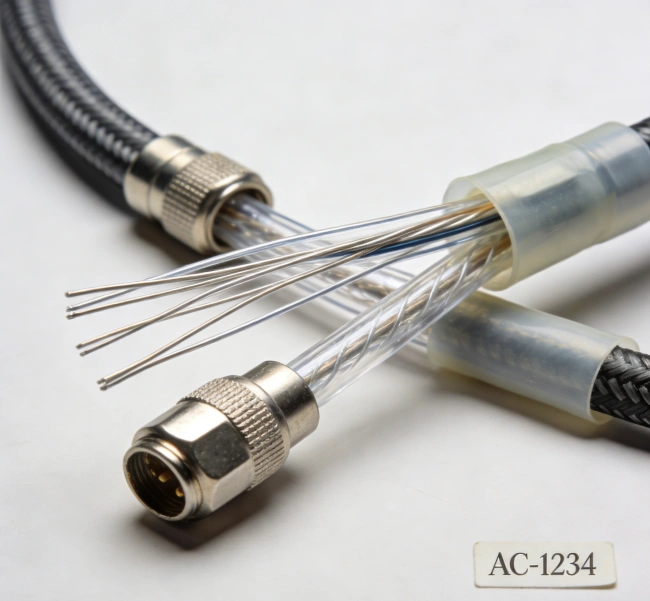

Aircraft Cable Assemblies: Resistance to Extreme Pressure

Aircraft operate in some of the harshest environments on Earth—from the crushing mechanical pressure of takeoff and landing to the extreme low-pressure conditions of high altitudes, and even the occasional impact of debris or structural vibration. For aircraft cable assemblies, which transmit critical power and data between avionics, engines, and control systems, resistance to extreme pressure is not just a performance metric—it is a non-negotiable requirement for flight safety. A single failure due to pressure-induced damage can lead to system malfunctions, delays, or even catastrophic accidents. Understanding how these assemblies achieve pressure resilience, and what factors define their durability, is essential for aerospace engineers, maintenance teams, and procurement professionals tasked with ensuring aircraft reliability.

1. Why Extreme Pressure Resistance Is Non-Negotiable

Aircraft cable assemblies face two primary types of extreme pressure, both of which demand specialized design and materials:

• Mechanical Pressure: This includes physical compression from structural components (e.g., when cables are routed through tight fuselage gaps), vibration-induced friction during flight, and impact from tools or debris during maintenance. Over time, unresistant cables may develop crushed conductors, cracked insulation, or broken shielding—disrupting signal or power flow.
• Environmental Pressure: At altitudes above 30,000 feet, atmospheric pressure drops to less than 10% of sea-level levels. This low-pressure environment can cause outgassing in poor-quality insulation (releasing volatile compounds that damage nearby components) or even lead to insulation shrinkage, exposing conductors to short circuits.

2. Key Design & Material Choices for Pressure Resilience

The ability of aircraft cable assemblies to withstand extreme pressure starts with intentional design and high-performance materials. Here are the critical elements:

Materials

• Conductors: Stranded, high-tensile metals (e.g., 镀银铜 [silver-plated copper] or nickel-copper alloys) are preferred over solid conductors. Stranding distributes mechanical pressure evenly across the wire, preventing crushing and maintaining conductivity even when the cable is flexed or compressed.
• Insulation & Jacketing: Polymers like PTFE (polytetrafluoroethylene) and PEEK (polyetheretherketone) are industry standards. These materials resist both high and low pressure, avoid outgassing in low-atmosphere conditions, and remain flexible even when compressed—unlike cheaper plastics that crack or harden.
• Shielding: Braided copper or aluminum shielding not only blocks electromagnetic interference (EMI) but also acts as a structural reinforcement. It absorbs mechanical pressure from external impacts, protecting the inner conductors and insulation from damage.

Structural Design

• Tight Tolerance Routing: Cables are designed with minimal slack when routed through aircraft frames. This reduces vibration-induced movement (a major source of repeated pressure) and prevents the cable from getting pinched between moving parts.
• Strain Reliefs: At connection points (e.g., where cables attach to sensors or avionics), strain relief boots made of durable rubber or silicone distribute pressure away from the connector—preventing the cable from pulling or twisting at the joint, a common failure point.

3. Testing & Certification: Ensuring Pressure Resistance

No aircraft cable assembly reaches the market without rigorous testing to validate its pressure resilience. These tests are governed by global aerospace standards, including:

• SAE AS 81044: This standard mandates pressure cycle testing, where cables are exposed to alternating high (up to 15 psi) and low (near-vacuum) pressure environments for hundreds of cycles. Insulation integrity and conductivity are measured after each cycle to ensure no degradation.
• MIL-DTL-24643: Requires mechanical compression testing, where a controlled force (up to 50 lbs per linear inch) is applied to the cable for 10 minutes. The cable must retain full conductivity and show no insulation damage post-test.
• RTCA DO-160: Includes low-pressure outgassing tests to ensure insulation does not release harmful compounds in high-altitude conditions—critical for protecting sensitive avionics like radar or navigation systems.

4. Practical Maintenance Tips to Preserve Pressure Resistance

Even the most durable cable assemblies require proper maintenance to retain pressure resilience over their lifespan (typically 15–20 years for commercial aircraft):

1. Avoid Over-Tightening Clamps: When securing cables to the aircraft frame, use torque-limiting tools to prevent over-compression of the jacket and insulation.
2. Inspect for Physical Damage: During routine checks, look for signs of crushing (flattened cables), insulation cracks, or frayed shielding—these are early indicators of pressure-related wear.
3. Replace Aging Insulation: Even high-performance polymers degrade over time. Cables older than 10 years should be tested for outgassing and flexibility, as aged insulation may no longer withstand extreme pressure.

Trust FRS for Aircraft Cable Assemblies Built for Extreme Pressure

When every flight depends on cable assemblies that resist crushing, outgassing, and pressure cycling, FRS stands as a trusted partner for aerospace manufacturers and MRO (Maintenance, Repair, Overhaul) teams. Our factory adheres to the strictest global standards—from using SAE-approved PTFE insulation and stranded nickel-copper conductors to conducting 100% pressure cycle testing on every batch. Whether you need custom-routed assemblies for new aircraft or replacement parts for legacy fleets, FRS delivers solutions engineered to survive the harshest pressure conditions. With FRS, you don’t just get a cable assembly—you get the confidence that your aircraft’s critical systems will perform, no matter the environment.
